SAMMLER "SSH" series
“SSH” series
Thermosiphon solar tank, horizontal installation, closed loop (indirect), fresh water technology.
Available in 160, 200 and 300l.
Hot water production is instantaneous through a high efficient heat exchanger made of AISI316L stainless steel, eliminating completely the possibility of the legioanella bacteria. The thermal insulation is made by of injected polyurethane foam of high density. The outer casing of the tank is made of steel with 3 layers of protection, including UV radiation.
The tank has been tested and certified according to European Directives (LVD 2014/35EU, ECD 2014/30/EU, PED 2014/68/EU, RoHS 2011/65/EU, ERP 2013/812/EU, Ecodesign 2013/814/EU).
"SSH" Series
OPTIONS
ELECTRICAL RESISTANCE CONNECTION
INSTALLATION OF EXTRA HEAT EXCHANGER FOR CONNECTION OF THE SOLAR PANEL TO THE RADIATOR
"SSH" Series
SPECIFICATIONS
| ΤΑΝΚ SSH | |||
|---|---|---|---|
| Model | SSH160 | SSH200 | SSH300 |
| Energy efficiency | Β | Β | C |
| Solar circuit capacity | 150l | 192l | 280l |
| Hot water production | Instantly | Instantly | Instantly |
| Heat exchanger capacity | 5,75l | 6,9l | 8,1l |
| Heat exchanger area | 2,37m² | 2,85m² | 3,33m² |
| Weight | 55kg | 72kg | 86kg |
| Insulation | Polyurethane | ||
| Insulation thickness | 50mm | 50mm | 50mm |
| Insulation density | 42kg/m³ | 42kg/m³ | 42kg/m³ |
| Tank material | S300EK AM FCE – 2,5mm | ||
| Heat exchanger material | AISI 316L | ||
| Outer casing material | GRANITE® HDX – 0,5mm | ||
| Protection – Casing color | UV – RAL9006 | ||
| Auxiliary power source | Electrical resistance 1,5kW – 3,5kW | ||
| Connections | 3/4” Female thread | ||
"SSH" Series

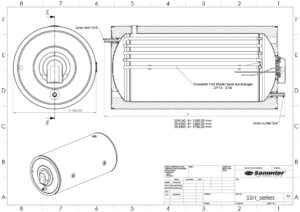

DIMENSIONS
SSH
"SSH" Series
