SAMMLER EVO series
Family Size
EVO200/42
Haute performance au design élégant dans un chauffe-eau solaire unique !!!
Le modèle EVO200/42 dispose d’un ballon d’une capacité de 200 litres, à circuit fermé, garantissant une résistance aux conditions de gel extrême. Il est équipé d’un capteur d’une surface sélective de 2,12 m², assurant une absorption maximale de l’énergie solaire.
Le capteur solaire a été testé pour ses performances et sa fiabilité en Suisse (Institut für Solartechnik SPF, Rapperswil) et a été certifié par différents organismes de certification à travers le monde tels que DIN Certco (Allemagne), DCL (Émirats arabes unis), SII (Israël), KSA (Corée du Sud), etc.
Family Size
200lt
Capacity
2
Collectors
10years
Warranty
"EVO200/42" series
OPTIONS
PLACEMENT OF ELECTRONIC ANODE ROD FOR ADDITIONAL PROTECTION
INSTALLATION OF EXTRA HEAT EXCHANGER FOR CONNECTION OF THE SOLAR PANEL TO THE RADIATOR
"EVO200/42" series
SPÉCIFICATIONS
| SOLAR WATER HEATER SERIES EVO | |
|---|---|
| Model | EVO200/42 |
| Type | Closed circuit |
| Placement | 25° |
| Collectors number | 2ps |
| TANK | |
| Model | SV200 |
| Energy class | Β |
| Capacity | 200l |
| Heat exchanger type | Mantle |
| Heat exchanger capacity | 9,6l |
| Heat exchanger area | 1,24m² |
| Weight | 85kg |
| Internal protection | Thick enamel 250-350μm |
| Anti Corrosion protection | Magnesium rod Ø22x400mm |
| Insulation | Polyurethane |
| Insulation thickness | 50mm |
| Insulation density | 42kg/m³ |
| Internal trunk material | S300EK AM FCE – 2,5mm |
| Heat exchanger construction material | S235JR – 1,5mm |
| Outer casing material | GRANITE® HDX – 0,5mm |
| Auxiliary source | Electrical resistance – 3,5kW |
| Connections | 3/4 » Female thread |
| COLLECTOR | |
| Model | ARIS2004 |
| Total area | 4,24m² |
| Apperture area | 3,84m² |
| Absorber surface | 3,82m² |
| Weight | 84kg |
| Frame | Aluminum profile 1,3mm – RAL7038 |
| Collector’s back | Al-ZN 0,5mm |
| Absorber | ALANODE Mirotherm – 0,4mm |
| Absorption | 95% |
| Emmisivity | 5% |
| Header | Ø22mm |
| Risers | Ø8mm – 9ps |
| Solar crystal | 3,2mm — 91,8% absorption |
| Insulation | stone wool |
| Insulation thickness | 40mm |
| Insulation density | 40kg/m³ |
| SUPPORT BASE | |
| Model | SB230LPNV |
| Construction material | Zn – 2,5mm |
| CONNECTION SET | |
| Model | IKEVO230DN |
| Water safety valve | 10bar |
| Closed circuit safety valve | 3bar |
| Type of accessories | Brass- Mechanical tightening |
| Connecting pipes | Stainless flexible DN16 |
| Insulation | 9x22mm protection UV |
| Thermal medium | CLARIANT Antifrogen SOL HT |
| Quantity | 10l (100% condensation) |
"EVO200/42" series

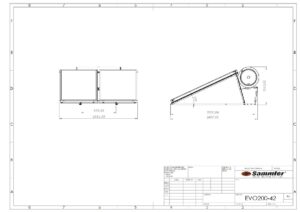

DIMENSIONS
EVO200/42NV
"EVO200/42" series
DOCUMENTS UTILES
BROCHURES
INSTRUCTIONS
Οδηγίες Εγκατάστασης / Manual_IK-XSxxx_(EVO)R3
1 fichier·s 999.97 KB
Οδηγίες_Εγκατάστασης / Installation Manual XR_series
1 fichier·s 825.72 KB
Οδηγίες Χρήσης / Manual SBxxx-LPNV
1 fichier·s 1.32 MB
TEST REPORTS
Δοκιμή Απόδοσης / Test Report ARIS2004
1 fichier·s 252.58 KB
Δοκιμή Αξιοπιστίας / Durability Test Report ARIS2504
1 fichier·s 266.43 KB
LEGAL DOCUMENTS
Δελτίο Προϊόντος / Product Fiche EVO_gen2
1 fichier·s 302.29 KB
Δελτίο Προϊόντος / Product Fiche XR
1 fichier·s 423.90 KB
Δελτίο Προϊόντος Συλλεκτών / Product Fiche Collectors
1 fichier·s 423.75 KB
Δήλωση Συμμόρφωσης / Declaration of Conformity_2024
1 fichier·s 657.32 KB
Δήλωση Συμμόρφωσης / Declaration of Conformity Tanks_2024
1 fichier·s 376.85 KB
CERTIFICATES
Πιστοποιητικό / Certification Solar Keymark ARIS2004-2304-2504_
1 fichier·s 974.60 KB
