SAMMLER series XR-H
XR300-25H
«Seul le meilleur est assez bon !»
Le chauffe-eau solaire XR allie technologie de pointe et design élégant et moderne, offrant des performances élevées, une grande efficacité et un confort au quotidien.
Le modèle XR300-25H est équipé d’un réservoir de 300 litres et d’un capteur solaire horizontal à surface sélective de 2,52 m², garantissant une absorption maximale de l’énergie solaire, même dans les régions peu ensoleillées. La conception horizontale du capteur contribue à l’esthétique du système. Le XR assure une production d’eau chaude fiable et constante à moindre coût, ce qui en fait un investissement sûr et durable pour tous les foyers.
300lt
Capacity
1
Collectors
10years
Warranty
SERIES XR300-25H
OPTIONS
INSTALLATION OF SOLAR WATER HEATER
IN A CERAMIC ROOF
INSTALLATION OF SIDE COVERS
PLACEMENT OF ELECTRONIC ANODE ROD
FOR ADDITIONAL PROTECTION
SERIES XR300-25H
SPÉCIFICATIONS
| SOLAR WATER HEATER SERIES XR-H | |
|---|---|
| Model | XR300-25H |
| Type | Closed circuit |
| Placement | 00° – 32° |
| Collectors number | 1p |
| TANK | |
|---|---|
| Model | XR300 |
| Energy class | Β |
| Capacity | 311l |
| Heat exchanger type | Mantle |
| Heat exchanger capacity | 19,56l |
| Heat exchanger area | 1,92m² |
| Weight | 107kg |
| Internal protection | Thick enamel 250-350μm |
| Anti Corrosion protection | Magnesium rod Ø22x400mm |
| Insulation | Polyurethane |
| Insulation thickness | 50mm |
| Insulation density | 42kg/m³ |
| Internal trunk material | S300EK AM FCE – 2,5mm |
| Heat exchanger construction material | S235JR – 1,5mm |
| Outer casing material | GRANITE® HDX – 0,5mm |
| Auxiliary source | Electrical resistance – 3,5kW |
| Connections | 3/4 » Female thread |
| COLLECTOR | |
|---|---|
| Model | ARIS2504H |
| Total area | 2,52m² |
| Apperture area | 2,30m² |
| Absorber surface | 2,28m² |
| Weight | 45kg |
| Frame | Aluminum profile 1,3mm – RAL7038 |
| Collector’s back | Al 0,4mm |
| Absorber | ALANODE Mirotherm – 0,4mm |
| Absorption | 95% |
| Emmisivity | 5% |
| Header | Ø22mm |
| Risers | Ø8mm – 18τεμ |
| Solar crystal | 3,2mm — 91,8% absorption |
| Insulation | stone wool |
| Insulation thickness | 40mm |
| Insulation density | 40kg/m³ |
| SUPPORT BASE | |
|---|---|
| Model | SB300-25H / TK300HB |
| Construction material | Zn – 2,5mm |
| CONNECTION SET | |
|---|---|
| Model | IKXR1-2 |
| Water safety valve | 10bar |
| Closed circuit safety valve | 3bar |
| Type of accessories | Type of accessories |
| Connecting pipes | Stainless flexible DN16 |
| Insulation | 9x22mm protection UV |
| Thermal medium | CLARIANT Antifrogen SOL HT |
| Quantity | 2l (100% condensation) |
SERIES XR300-25H
DIMENSIONS

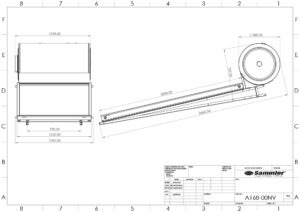

INSTALLATION OF SOLAR WATER HEATER
IN A CERAMIC ROOF
INSTALLATION OF SOLAR WATER HEATER
32 DEGREE INCLINE
SERIES XR300-25H
