SAMMLER series XR
XR200-21
Rien de moins que l’excellence!
Le chauffe-eau solaire XR associe une technologie de pointe à un design moderne, offrant des performances élevées, une grande efficacité et un confort d’utilisation optimal.
Le modèle XR200-21 est équipé d’un ballon de 200 litres, tandis que le capteur à surface sélective de 2,12 m² garantit une absorption maximale de l’énergie solaire, même dans des conditions climatiques exigeantes. Le XR assure un approvisionnement fiable en eau chaude à un coût minimal, et ses matériaux durables ainsi que la qualité soignée de sa fabrication en font un investissement fiable et pérenne pour chaque foyer.
200lt
Capacity
1
Collectors
10years
Warranty
SERIES XR200-21
OPTIONS
INSTALLATION OF SOLAR WATER HEATER
IN A CERAMIC ROOF
INSTALLATION OF SOLAR WATER HEATER
20 DEGREE INCLINE
INSTALLATION OF SOLAR WATER HEATER
37 DEGREE INCLINE
INSTALLATION OF SIDE COVERS
PLACEMENT OF ELECTRONIC ANODE ROD
FOR ADDITIONAL PROTECTION
SERIES XR200-21
SPÉCIFICATIONS
| SOLAR WATER HEATER SERIES XR | |
|---|---|
| Model | XR200-21 |
| Type | Closed circuit |
| Placement | 00° – 20° – 37° |
| Collectors number | 1p |
| TANK | |
|---|---|
| Model | XR200 |
| Energy class | Β |
| Capacity | 202l |
| Heat exchanger type | Mantle |
| Heat exchanger capacity | 10,92l |
| Heat exchanger area | 1,07m² |
| Weight | 85kg |
| Internal protection | Thick enamel 250-350μm |
| Anti Corrosion protection | Magnesium rod Ø22x400mm |
| Insulation | Polyurethane |
| Insulation thickness | 50mm |
| Insulation density | 42kg/m³ |
| Internal trunk material | S300EK AM FCE – 2,5mm |
| Heat exchanger construction material | S235JR – 1,5mm |
| Outer casing material | GRANITE® HDX – 0,5mm |
| Auxiliary source | Electrical resistance – 3,5kW |
| Connections | 3/4 » Female thread |
| COLLECTOR | |
|---|---|
| Model | ARIS2004 |
| Total area | 2,12m² |
| Apperture area | 1,92m² |
| Absorber surface | 1,91m² |
| Weight | 42kg |
| Frame | Aluminum profile 1,3mm – RAL7038 |
| Collector’s back | Al-ZN 0,5mm |
| Absorber | ALANODE Mirotherm – 0,4mm |
| Absorption | 95% |
| Emmisivity | 5% |
| Header | Ø22mm |
| Risers | Ø8mm – 9ps |
| Solar crystal | 3,2mm — 91,8% absorption |
| Insulation | stone wool |
| Insulation thickness | 40mm |
| Insulation density | 40kg/m³ |
| SUPPORT BASE | |
|---|---|
| Model | SB200-00NV / SB200-20NV / SB200-37NV |
| Construction material | Zn – 2,5mm |
| CONNECTION SET | |
|---|---|
| Model | IKXR1-2 |
| Water safety valve | 10bar |
| Closed circuit safety valve | 3bar |
| Type of accessories | Brass- Mechanical tightening |
| Connecting pipes | Stainless flexible DN16 |
| Insulation | 9x22mm protection UV |
| Thermal medium | CLARIANT Antifrogen SOL HT |
| Quantity | 2l (100% condensation) |
SERIES XR200-21
DIMENSIONS

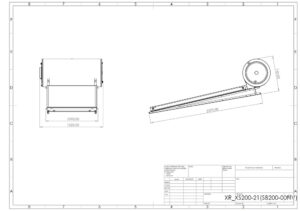

INSTALLATION OF SOLAR WATER HEATER
IN A CERAMIC ROOF
INSTALLATION OF SOLAR WATER HEATER
20 DEGREE INCLINE

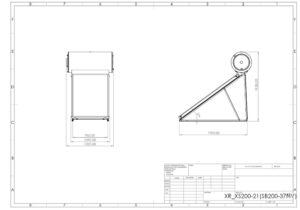

INSTALLATION OF SOLAR WATER HEATER
37 DEGREE INCLINE
SERIES XR200-21
DOCUMENTS UTILES
BROCHURES
Διαφημιστικό Φυλλάδιο / Brochure TS XR
1 fichier·s 5.71 MB
INSTRUCTIONS
Οδηγίες Εγκατάστασης / Manual_SBxxx-37NV_v2025
1 fichier·s 893.46 KB
Οδηγίες Εγκατάστασης / Manual_SBxxx-20NV_v2025
1 fichier·s 1.34 MB
Οδηγίες Εγκατάστασης / Manual_SBxxx-00NV_v2025
1 fichier·s 1.79 MB
Οδηγίες Εγκατάστασης / Manual_IK-XR
1 fichier·s 889.05 KB
Οδηγίες_Εγκατάστασης / Installation Manual XR_series
1 fichier·s 825.72 KB
TEST REPORTS
LEGAL DOCUMENTS
Δελτίο Προϊόντος / Product Fiche XR
1 fichier·s 423.90 KB
Δελτίο Προϊόντος Συλλεκτών / Product Fiche Collectors
1 fichier·s 423.75 KB
Δήλωση Συμμόρφωσης / Declaration of Conformity_2024
1 fichier·s 657.32 KB
Δελτίο Προϊόντος / Product Fiche XR_TS
1 fichier·s 423.90 KB
Δήλωση Συμμόρφωσης / Declaration of Conformity Tanks_2024
1 fichier·s 376.85 KB
CERTIFICATES
Πιστοποιητικό / Certification OG100 ARIS2004
1 fichier·s 473.74 KB
Πιστοποιητικό / Certification Solar Keymark ARIS2004-2304-2504_
1 fichier·s 974.60 KB
